JS type elastic coil spring coupling
Serpentine spring couplings are classified into straight type (constant stiffness) and curved type (variable stiffness) according to their tooth profiles.
Keywords：
JS type elastic coil spring coupling
Category：
Hotline：
JS type elastic coil spring coupling
Serpentine spring couplings are classified into straight type (constant stiffness) and curved type (variable stiffness) according to their tooth profiles. Constant stiffness couplings are suitable for working conditions where the variation of transmitted torque is relatively small. When the load transmitted by a variable stiffness coupling increases, the spring stiffness also increases. However, the relative rotation Angle of the half coupling has a nonlinear relationship with the transmitted torque. It is suitable for working conditions where the transmitted torque changes greatly and in both forward and reverse rotations, and has a good vibration damping and buffering effect. All JS type couplings in this standard are variable stiffness spring couplings. The serpentine spring coupling works reliably and has a relatively small external dimension.
JS type serpentine spring coupling
The mechanism of the JS type basic serpentine spring coupling is shown in the figure, and the basic parameters and main dimensions are presented in the table.
JS type horizontal installation cover shell coupling
1.5- half coupling
2. Zhaoliang
3.Serpentine spring
4.Lubrication hole

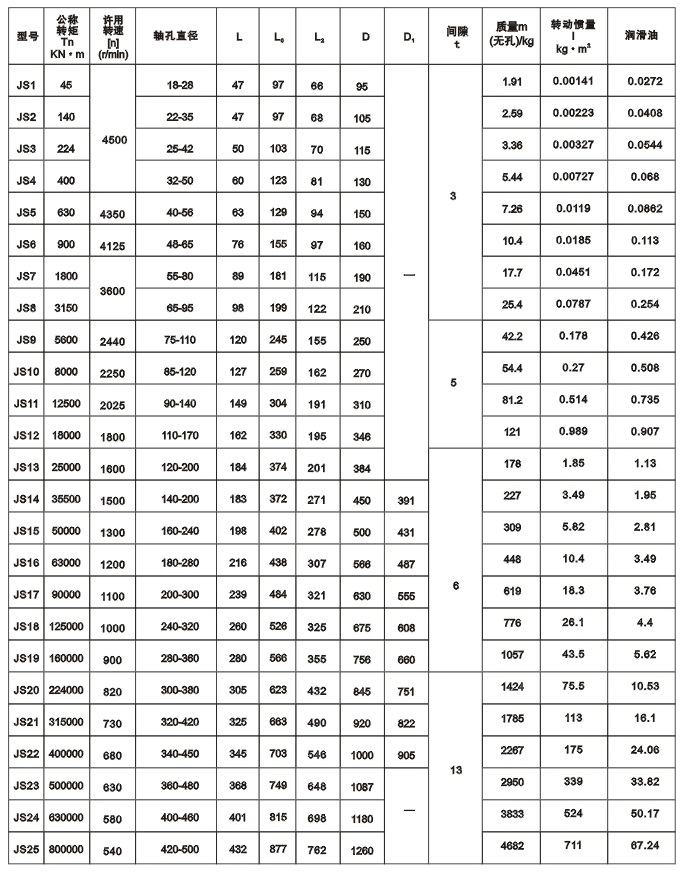

Basic parameters and main dimensions of JS type horizontal installation cover coupling
Note:
1. If the type of the shaft hole is to be negotiated with the manufacturer in accordance with GB/T3852.
2. The mass and transmission inertia are the calculated values without holes.
