NF type non-contact backstop
NF type non-contact backstop is an anti-reverse device installed on a high-speed shaft. It has the advantages of reliable backstop, easy release, large backstop torque, light weight and easy installation.
Keywords：
NF type non-contact backstop
Category：
Hotline：
NF type non-contact backstop
NF type non-contact backstop is an anti-reverse device installed on a high-speed shaft. It has the advantages of reliable backstop, easy release, large backstop torque, light weight and easy installation. Its comprehensive mechanical properties are obviously better than other backcheck device products, widely used in belt conveyor, bucket elevator, scraper conveyor and other equipment with backcheck requirements. Our factory produces NF type backstop, its technical performance is fully in line with the provisions of B/ T9015-1999, at the same time, in order to facilitate the installation of our factory also supply non-contact backstop with anti-transposition, model NFA.

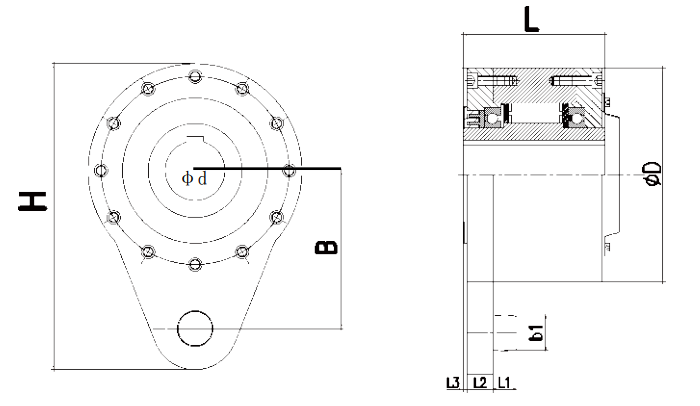

Specification | Rated inverse | Non-contact | The highest | Mounting size mm | Max | |||||||||||
dmax | dmin | smin | smax | D | b1 | H | B | L | L1 | L2 | L3 | |||||
NF10 | 1000 | 450 | 1500 | 50 | 32 | 110 | 145 | 190 | 28 | 278 | 150 | 145 | 25 | 20 | 5 | 28 |
NF16 | 1600 | 450 | 1500 | 60 | 45 | 110 | 150 | 210 | 32 | 305 | 160 | 150 | 25 | 22 | 5 | 31 |
NF25 | 2500 | 425 | 1500 | 70 | 50 | 115 | 155 | 230 | 38 | 330 | 170 | 155.5 | 25 | 25 | 5 | 38 |
NF40 | 4000 | 425 | 1500 | 80 | 60 | 120 | 166 | 250 | 42 | 358 | 185 | 165 | 28 | 30 | 5 | 49 |
NF63 | 6300 | 400 | 1500 | 90 | 70 | 125 | 180 | 260 | 45 | 378 | 195 | 178 | 30 | 35 | 5 | 62 |
NF80 | 8000 | 400 | 1500 | 100 | 80 | 130 | 185 | 280 | 48 | 410 | 210 | 182 | 35 | 35 | 5 | 73 |
NF100 | 10000 | 400 | 1500 | 110 | 90 | 140 | 220 | 295 | 52 | 440 | 225 | 215 | 35 | 45 | 5 | 98 |
NF125 | 12500 | 375 | 1500 | 130 | 100 | 160 | 250 | 330 | 58 | 492 | 250 | 240 | 40 | 50 | 8 | 154 |
NF160 | 16000 | 375 | 1000 | 140 | 110 | 165 | 260 | 360 | 62 | 532 | 260 | 245 | 40 | 55 | 8 | 175 |
NF200 | 20000 | 375 | 1000 | 150 | 120 | 175 | 260 | 405 | 65 | 590 | 300 | 253 | 50 | 58 | 8 | 214 |
NF250 | 25000 | 350 | 1000 | 160 | 130 | 180 | 270 | 440 | 70 | 464 | 335 | 253 | 50 | 63 | 8 | 256 |
Note :1. "Smin" and "Smax" in the table are respectively the minimum and maximum lengths required to install the shaft extension of the backstop;
2.d priority series: 32, 38, 40, 42, 45, 48, 50, 55, 60, 65, 70, 75, 80, 85, 90, 95, 100, 110, 120, 130, 140, 150, 160;
3. The tolerance value of the inner hole is E7, and the recommended fitting tolerance is E7/h6.
4. Keyway dimensions and tolerances are manufactured according to D10 GB/T1095-79.
